JSON Requests in HubRise

Communication Mechanisms

HubRise allows easy sharing of data between different applications by exchanging API requests. This communication mechanism always involves a second application that either sends data to or receives data from HubRise. All these exchanges are recorded in the HubRise back office and the complete logs can be inspected and debugged. For information on how to find the logs in the back office, see HubRise Help, Data Logs.

The typical lifecycle of such an exchange involves three components:

  • Request
  • Response
  • Callback(s)

The request is the first part of an exchange of data, and is always sent by a connected application to HubRise. The response is the second part of this exchange, where HubRise acknowledges or not the receipt of this message.

The typical case is the creation of an order in an app connected with HubRise. When an order is created, the app generates a request and sends the order details to HubRise with it. Then, HubRise can acknowledge the successful receipt of the order and send back a response with this information.

Finally, a request can automatically trigger other requests to different apps. For example, an order creation request can trigger a request to a loyalty solution to obtain information about the customer. These automatic requests are callbacks, and each of them has a request and a response. Callbacks are always sent by HubRise to a third-party application.

Components of API Requests in HubRise

Logs and Requests in HubRise

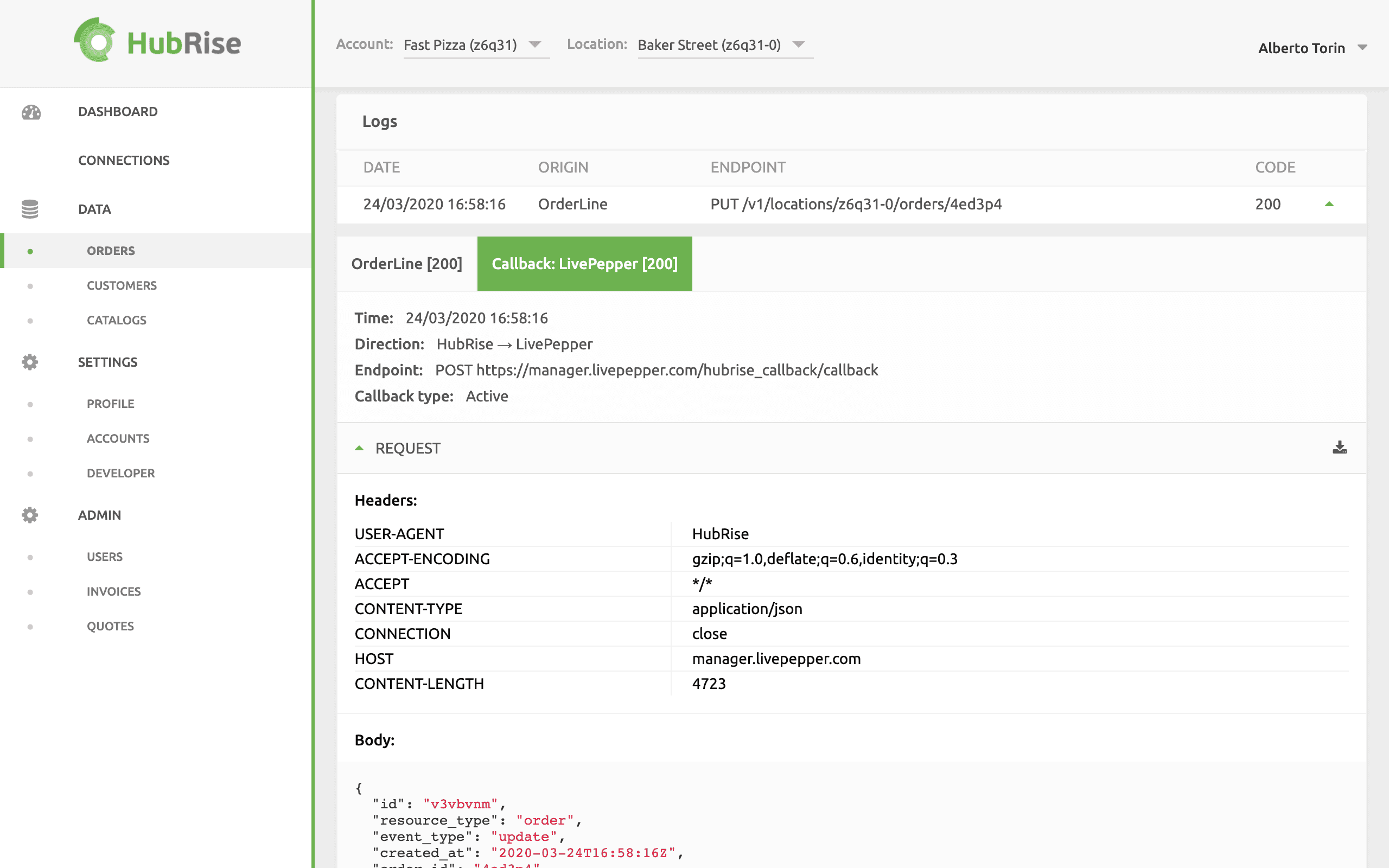

In the HubRise back office, each subsection in DATA provides more information through their log page.

For example, each order in the ORDERS page can be expanded to reveal more information about it. The Logs section, in particular, lists all the API requests associated with the order.

For each request, the following information is displayed.

  • DATE: The date and time of the request.
  • ORIGIN: The connected application that started the request.
  • ENDPOINT: The endpoint of the request.
  • CODE: The response code.

Each row can be further expanded to reveal detailed information about the request, the response, and possible callbacks associated with it.

A Typical HubRise Request

Endpoint

The method and the URL together are the endpoint of the request. Although they are really a single entity, and they appear as such in the HubRise back office, these two components will be analysed separately in the next two sections.

Method

The HTTP method of the request is the action that needs to be performed with the data contained in the request. The typical methods found in HubRise requests are the following.

HTTP MethodDescription
GETIt is used to retrieve information, typically the details about an order or a customer.
POSTIt is used to create new information, typically a new order.
PUTIt is used to completely replace information already present in the system with the data carried by the request.
PATCHIt is used to partially replace information already present in the system with the data carried by the request.
DELETEIt is used, for example, by passive callbacks to delete existing events.

URL, Domain and Path

The URL of the request specifies the address where the request is sent. URLs have typically the following form.

https://api.hubrise.com/v1/location/orders

They are composed of two parts: Domain and path.

The domain is the first part of the URL, in this case:

https://api.hubrise.com

It specifies the location of the server dealing with the request.

The path is the second part of the URL, in this case:

/v1/location/orders

Together with the HTTP method, it specifies the action that must be performed with the data contained in the request.

Headers

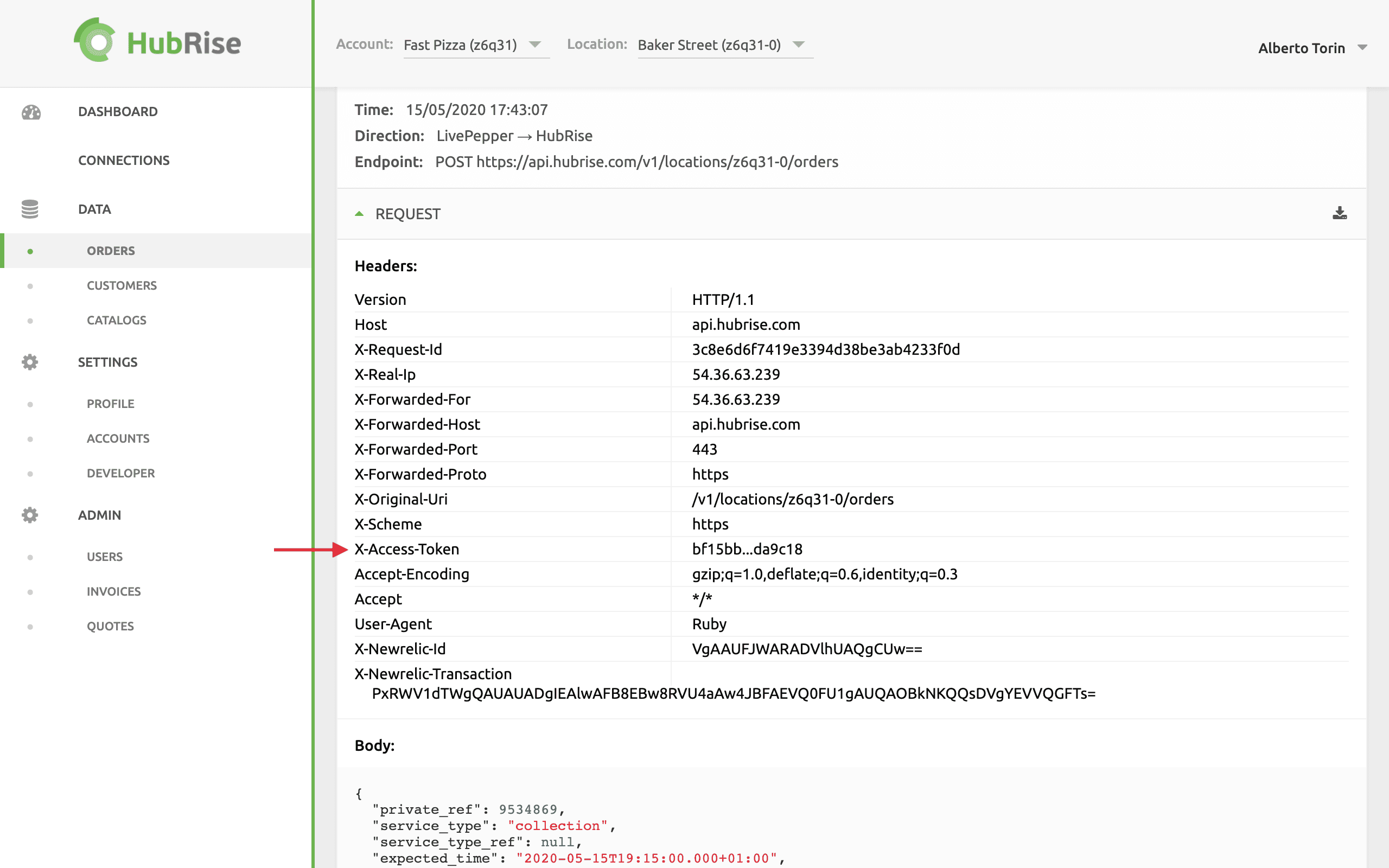

The headers are the metadata that accompany each request. The most important piece of information for debugging purposes is the Authentication token: The unique code assigned to the client by HubRise.

It appears in each request under the X-Access-Token key, and is partially hidden for security reasons.

Authentication Token in HubRise Request

Body

The body is the JSON content of the request. For an example of a JSON content, see A Practical Example.

For more details about the JSON content of the requests in HubRise, see HubRise Data Model.

A Typical HubRise Response

Code

The response code tells the outcome of the request. The code 200 indicates a successful request, while other codes are related to various types of errors. The following table highlights the main errors. For possible troubleshooting strategies depending on the code, see Troubleshooting Requests.

Response CodeDescription
200The request has been successfully received.
400The request was invalid.
401Authentication credentials are missing or not valid.
403The request is correct but the server has refused to process it.
404The URL of the request does not exist.
422The request is formally correct and valid, but the server cannot process its content.
429Too many requests were made.
500There was an internal error in the HubRise server.
